Warehouse Layout and Organization Best Practices
Warehouse layout is the silent driver of performance. How you arrange racks, staging areas, and pick zones determines how far workers walk, how often they make errors, and how many orders you ship per hour. A well-planned layout turns the same labor force into a faster, more accurate operation — without adding headcount.
This guide covers the layout decisions that have the biggest impact on throughput, accuracy, and cost — from zoning and slotting to vertical space, cross-docking, and the technology that ties it all together.
In This Guide

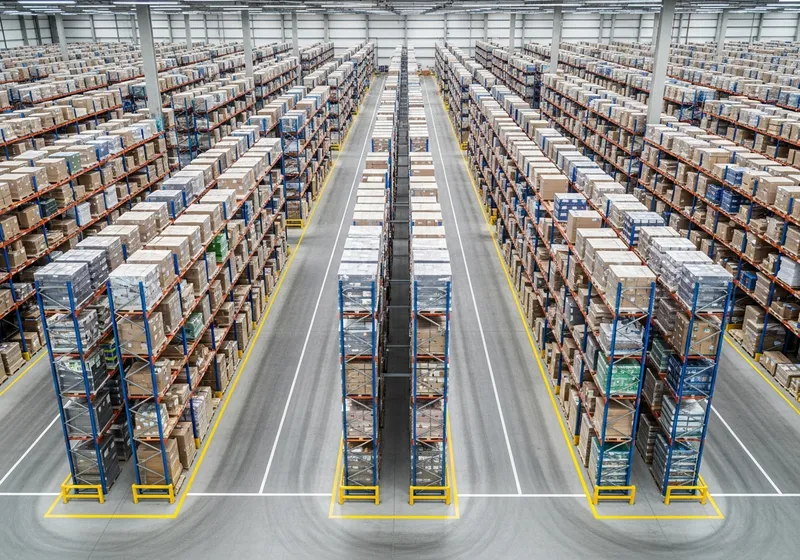

Why Layout Matters More Than You Think
Most warehouse performance problems are layout problems in disguise. Slow order processing, high error rates, congested aisles, and rising labor costs all trace back to how space, product, and people are organized relative to each other.
A well-designed layout has four measurable effects:
Reduced Travel Time
Pickers spend up to 60% of their shift walking. Placing high-velocity SKUs near pack stations and minimizing aisle backtracking directly increases picks per hour.
Fewer Picking Errors
When items live in clearly defined, logically organized locations, the margin for human error shrinks. Fewer errors means fewer re-ships, fewer inventory adjustments, and higher customer satisfaction.
Safer Work Environment
Organized layouts with clear aisle widths, marked pedestrian paths, and proper clearances reduce accidents. Fewer incidents means lower insurance costs and more consistent staffing.
Higher Throughput Capacity
The cumulative effect of faster picks, fewer errors, and safer operations is a facility that can process more orders with the same resources — or the same orders with fewer resources.
Zone Your Warehouse by SKU Velocity
Not every SKU moves at the same speed. The top 20% of your products typically drive 80% of your pick volume. Those fast-movers belong closest to pack stations and shipping docks — ideally at waist-to-chest height in the most accessible rack positions.
Divide your warehouse into zones based on pick frequency:
| Zone | SKU Velocity | Placement |
|---|---|---|
| A (Hot) | Top 20% by pick volume | Closest to pack/ship — golden zone height |
| B (Warm) | Middle 30% | Adjacent aisles — easy reach positions |
| C (Cold) | Bottom 50% | Upper racks, back aisles, bulk storage |
With pick-to-light systems, zone-based picking becomes even more effective. Each pick zone can operate independently with its own set of illuminated displays, allowing multiple pickers to work simultaneously without interfering with each other. The lights guide workers directly to the correct location, eliminating search time within each zone.
Use Dynamic Slotting to Stay Current
Static slot assignments decay over time. Seasonal demand shifts, new product launches, and promotional cycles all change which SKUs are moving fastest. A slot assignment that was optimal three months ago may be costing you travel time today.
Dynamic slotting means reviewing and adjusting product placement on a regular cadence — weekly or monthly, depending on your velocity distribution. Your WMS should be tracking pick frequency data that feeds directly into re-slotting decisions.
The Pick-to-Light Advantage
With wireless pick-to-light, re-slotting is a software change — not a hardware project. Because Voodoo's displays are wireless and battery-powered, you can move them to new locations in minutes. There are no wires to re-route and no electricians to schedule. The system updates automatically through the REST API, so your WMS always maps to the current physical layout.
The biggest gains from dynamic slotting come from tracking two metrics: pick frequency (how often a SKU is picked) and co-occurrence (which SKUs are frequently picked together). Placing co-occurring items near each other further reduces travel time per order.
Maximize Vertical Space
Square footage is expensive. Most warehouses underutilize their vertical dimension — storing product only up to heights that workers can comfortably reach. But with the right racking and retrieval strategy, you can double or triple your storage density without expanding your footprint.
Options for going vertical include:
- Multi-tier racking: Standard pallet racking extended to full building height, with upper levels reserved for case or pallet replenishment of lower pick faces.
- Mezzanine floors: A second (or third) level built above the ground floor for pick faces, packing stations, or value-added services — without pouring new concrete.
- Narrow-aisle configurations: Tighter aisle widths (guided by wire or rail) recover floor space and allow more rack faces per square foot. Requires specialized lift equipment but dramatically increases density.
The key constraint with vertical storage is replenishment speed. Your fastest-moving SKUs still need to live at pick-face height. Use vertical space for bulk reserves and slower-moving inventory, replenishing the golden zone from above as stock depletes.
Deploy Cross-Docking for Fast-Turn Goods
Not everything needs to be stored. Products with predictable, high-velocity demand — or items that arrive pre-allocated to outbound orders — can move directly from receiving to shipping with minimal or no time in storage. This is cross-docking, and it eliminates an entire cycle of put-away and retrieval.
A cross-dock layout dedicates a staging area between receiving and shipping docks where inbound goods are sorted directly into outbound shipments. The benefits compound:
- Eliminates storage handling costs for qualifying product
- Reduces average time-in-warehouse from days to hours
- Frees rack space for slower-moving inventory that actually needs storage
- Decreases product touches, lowering damage rates
Cross-docking works best for operations with reliable inbound schedules and pre-allocated orders. If your WMS can identify cross-dock-eligible shipments at receiving, pick-to-light displays at the sorting area can direct workers to the correct outbound lane for each item, accelerating the sort process.
Break Down Bulk into Pick-Friendly Faces
Receiving bulk pallets and putting them away as-is creates a downstream problem: pickers end up at the same location simultaneously, or they struggle to access eaches from full-case or full-pallet storage. This bottleneck slows everyone down.
Instead, break bulk receipts into individual pick faces during the put-away process. Spread high-velocity items across multiple pick locations to reduce congestion. Maintain a separate bulk reserve area for replenishment, and set par levels that trigger replenishment before a pick face runs empty.
The result is a smoother pick flow. Pickers can access any item without waiting for another worker to clear the location, and pick faces stay stocked without excess product cluttering the pick aisle.
Invest in the Right Technology
Layout optimization sets the stage, but technology multiplies the gains. The right tools close the gap between a good layout and operational excellence.
Consider which of these technologies addresses your specific pain points:
Pick-to-Light
Wireless displays at each pick location show workers exactly what to pick and how many. Eliminates paper lists, reduces training time to hours, and improves accuracy to 99.9%+. The most impactful technology for manual picking operations.
Learn more →Warehouse Management Systems
WMS platforms orchestrate inventory, orders, and labor. They feed pick tasks to light-directed systems and provide the data foundation for slotting optimization and performance measurement.
Learn more →RF Barcode Scanners
Handheld scanners verify picks at the point of execution. When paired with pick-to-light, they create a closed-loop system where lights direct and scanners confirm.
Learn more →Automated Storage and Retrieval
AS/RS systems automate the storage and retrieval of pallets or cases from high-density racking. Best suited for facilities with very high throughput requirements and the capital budget to match.
A note on ROI: The best warehouse technology investments are the ones you can deploy incrementally. Wireless pick-to-light systems require no fixed infrastructure — you can start with a single zone and expand as results prove out. No wiring, no construction, no downtime. See our ROI analysis for typical payback timelines.
Apply Lean Principles to Warehouse Operations
Lean thinking, borrowed from manufacturing, identifies and eliminates waste in every process. In warehousing, waste takes the form of unnecessary motion, excess inventory, waiting time, over-processing, and defects (mispicks).
Three lean methodologies translate directly to warehouse layout and operations:
- 5S (Sort, Set in Order, Shine, Standardize, Sustain): Keep every area organized with clear labeling, defined locations for tools and materials, and regular audits of workplace organization.
- Value Stream Mapping: Map the entire order fulfillment process from receiving to shipping. Identify steps that add value (picking, packing) versus steps that are pure waste (walking, searching, waiting). Redesign the layout to minimize non-value steps.
- Kaizen (Continuous Improvement): Establish a cadence for reviewing and improving processes. Small, regular improvements compound over time. Involve frontline workers — they see inefficiencies management often misses.
The common thread across all lean methods is measurement. You cannot improve what you do not measure. Track picks per hour, error rates, and order cycle times at the zone level, and use that data to drive layout adjustments.
Design for Scalability from Day One
Warehouse needs change. Seasonal peaks spike volume 3-5x above baseline. New product lines add SKUs. Customer expectations tighten delivery windows. A layout that works perfectly today but cannot adapt to tomorrow's demands is a future liability.
Scalable layout design means:
- Modular racking that can be reconfigured without structural changes
- Flexible staging areas that expand during peak seasons and contract during lulls
- Technology that scales without proportional infrastructure investment
- Aisle widths and dock configurations that accommodate growth in throughput
Wireless pick-to-light is designed around this principle. Adding a new pick zone means mounting new displays and assigning them through software — not running conduit or re-wiring a control panel. Most customers go from unboxing to live picks in under a day.

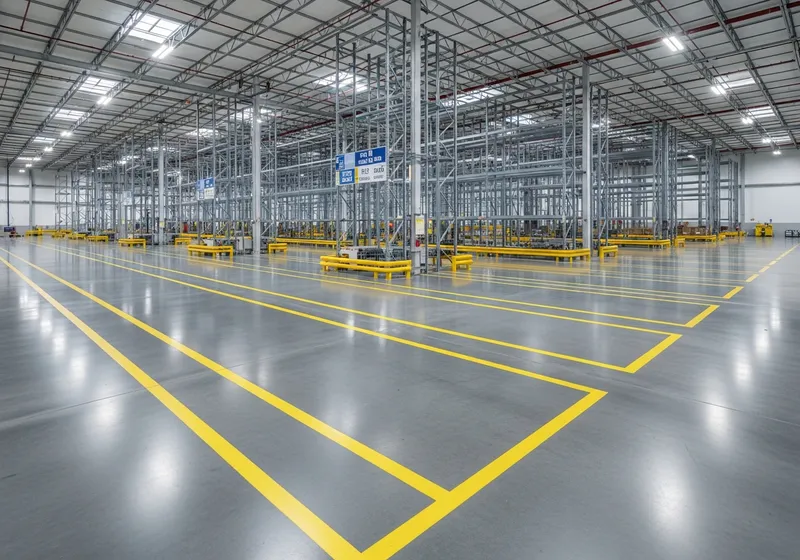

Make Safety a Layout Decision
Safety is not a policy bolted onto a layout after the fact — it is a design constraint that shapes the layout itself. Aisles need adequate width for the equipment that travels them. Pedestrian and forklift traffic should be separated by physical barriers or clearly marked paths. Emergency exits must remain clear and accessible at all times.
Specific layout decisions that improve safety:
- Maintain minimum aisle widths per OSHA guidelines for the equipment in use
- Install rack guards and end-of-aisle protectors at every intersection
- Designate one-way traffic flow in high-density areas to prevent collisions
- Keep floor-level pick faces stocked to minimize ladder and reach truck usage
- Ensure adequate lighting at pick faces — workers who can see clearly make fewer errors and have fewer accidents
Light-directed systems have a secondary safety benefit: because workers look at the display instead of down at a paper list or handheld screen, they maintain better situational awareness of their surroundings while picking.
Audit, Measure, and Iterate
No layout stays optimal forever. Product mix changes, order profiles evolve, and operational bottlenecks shift. Regular audits ensure your layout keeps pace with your business.
Establish a quarterly review that examines:
| Metric | What It Tells You |
|---|---|
| Picks per labor hour | Overall picking productivity — are layout changes producing measurable gains? |
| Pick accuracy rate | Error frequency — are mispicks concentrated in specific zones or SKUs? |
| Average order cycle time | End-to-end speed — from order release to ship-ready |
| Travel distance per pick | Layout efficiency — are workers walking further than necessary? |
| Storage density utilization | Space usage — how much of your available cubic footage is actually storing product? |
| Replenishment frequency | Pick face sizing — are faces running empty too often, creating picker wait time? |
Use this data to make targeted adjustments — not wholesale redesigns. The most effective warehouses treat layout as a living system that evolves continuously, not a project completed once and forgotten.
